cml:group

Group related questions together so that they can easily be hidden or shown with CML logic without having to write only-if attributes for every field.

&lt;cml:radios label="What is the sentiment of this tweet?" name="sentiment" &gt;
 &lt;cml:radio label="Positive"/&gt;
 &lt;cml:radio label="Neutral"/&gt;
 &lt;cml:radio label="Negative"/&gt;
&lt;/cml:radios&gt;

In the above example, both the cml:text and cml:checkboxes fields will be hidden/shown depending on whether the sentiment field passes the cml:radios logic.

Allowing multiple answers for cml:group

There may be occasions where multiple answers are needed for elements with cml:group. Using ‘multiple=true’ can help keep your UI looking clean and allow for as many answers as you’d like:

&lt;cml:checkbox label="Does the tweet have any names mentioned?" validates="required" name="tweet_names" /&gt; &lt;cml:group only-if="!tweet_names:unchecked" multiple="true"&gt; &lt;cml:text label="Enter name:" name="names" /&gt;&lt;/cml:group&gt;

⭐ NOTE The following information is supported in Quality Flow and NOT Adap Legacy:

You can create multiple nested groups with no maximum depth. However, we recommend limiting nesting to a maximum of three levels for a better user experience for contributors.
Logic can be triggered both outside and inside a cml:group.
Limitation – Radio Buttons in Groups:
You cannot trigger logic using radio button elements either to show a group or from within a group.
- ✅ Recommended alternative: Use cml:select instead.
Limitation – cml:text with multiple="true":
cml:text elements with multiple="true" do not work inside a cml:group.
- ✅ Recommended alternative: Nest a cml:group and place the cml:text inside that group.

QF Output:

When using cml:group with multiple="true", all element outputs within the group appear in a single column, separated by pipes (|).
For example, if cml:text is inside a cml:group and a contributor creates 3 groups, the output will look like:
Response 1 | Response 2 | Response 3
If a cml:text element is optional or conditionally triggered, and the contributor does not fill it out, the output will include a NULL.
For example, if the second group was skipped or left blank, the output would be:
Response 1 | NULL | Response 3=

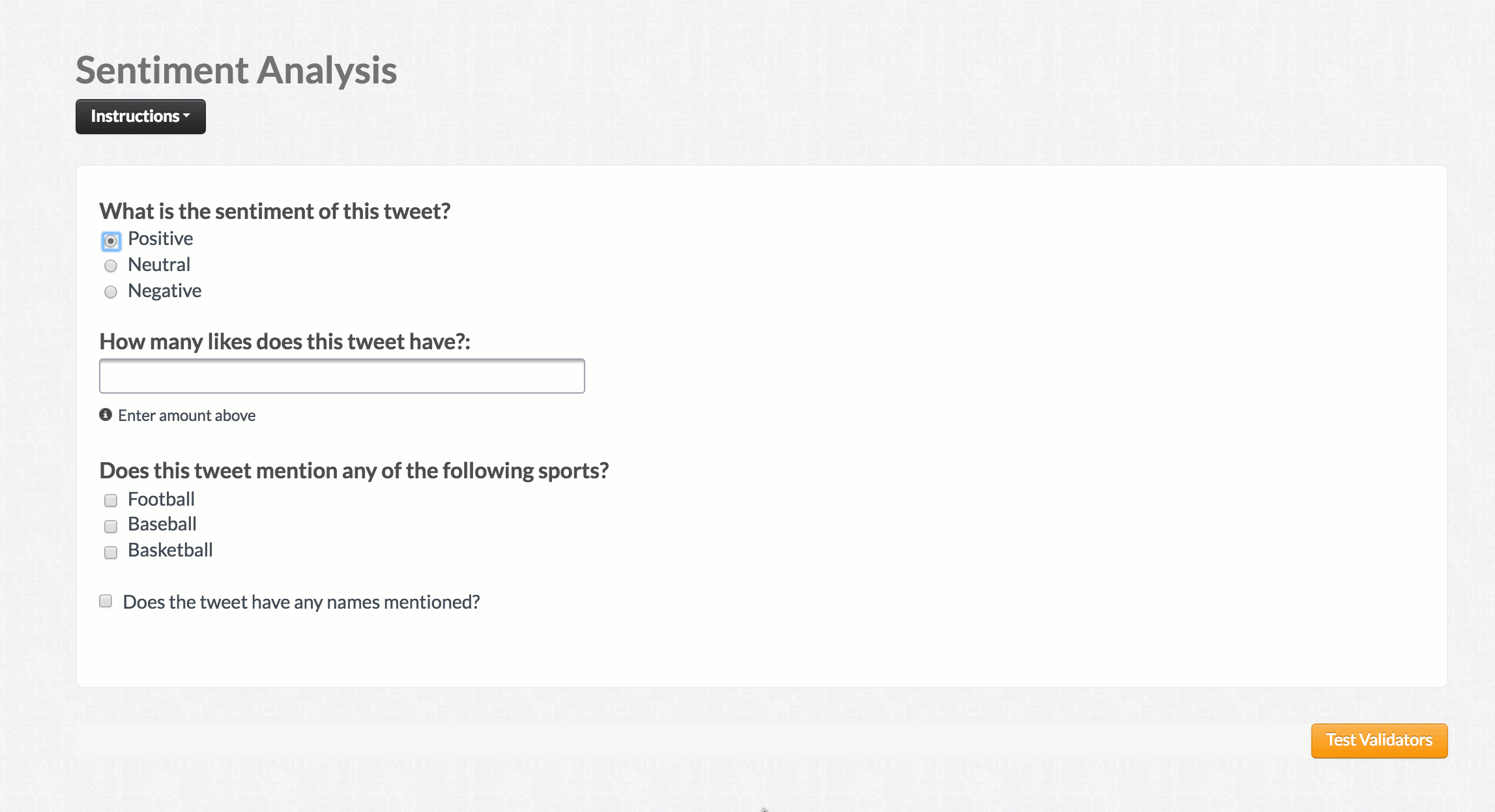

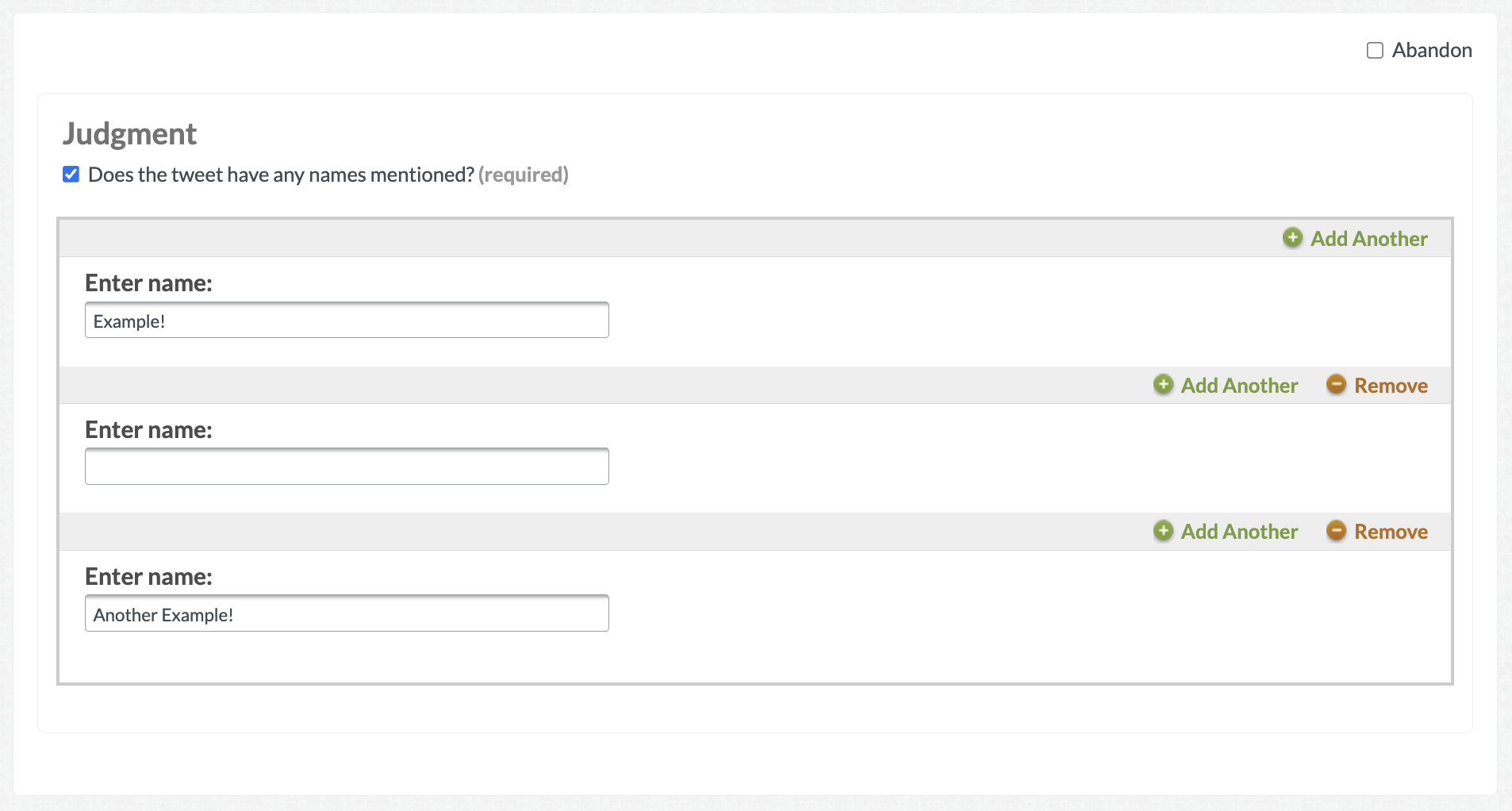

Example output from the previous code snippet - Within the job:

In the output:
