JavaScript | Guide to: Bootstrap 5

We've integrated our platform with Bootstrap 5 to make it easier to build beautiful, custom jobs in the Code Editor. This article describes how to use the Bootstrap 5 framework when building a job in Appen.

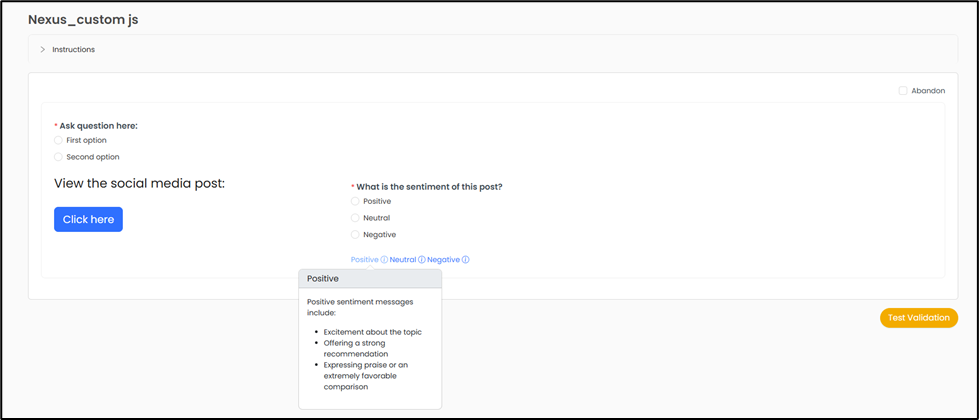

This is a job that uses Bootstrap extensively:

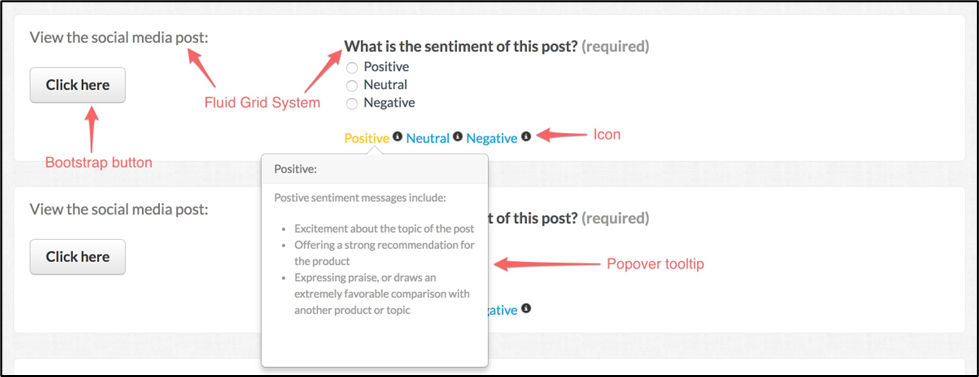

And here’s the same job, with Bootstrap elements called out:

Fig. 2: Job with Bootstrap elements called out

Here's a preview of the entire code for this job:

CML:

<cml:radios label="Ask question here:" validates="required" gold="true">
  <cml:radio label="First option" value="first_option" />
  <cml:radio label="Second option" value="second_option" />
</cml:radios>
<!--Bootstrap 5 uses .row instead of .row-fluid. Columns use .col-* instead of .span* -->
<div class="row">

  <!--First column spanning 4 of 12 grid columns -->
  <div class="col-4">
    <h4>View the social media post:</h4>
    <br/>
    <!--Button uses .btn-lg (was .btn-large in Bootstrap 2) -->
    <a href="{{url}}" class="btn btn-primary btn-lg">Click here</a>
  </div>

  <!--Second column spanning 8 of 12 grid columns -->
  <div class="col-8">
    <cml:radios label="What is the sentiment of this post?" name="sentiment" validates="required">
      <cml:radio label="Positive" value="positive"/>
      <cml:radio label="Neutral" value="neutral"/>
      <cml:radio label="Negative" value="negative"/>
    </cml:radios>

    <!--Bootstrap Icons replace Glyphicons. Use -->
    <a tabindex="0" class="positive_tip" role="button" data-bs-trigger="hover focus" data-bs-toggle="popover"  data-bs-title="Positive" data-bs-html="true" data-bs-placement="bottom">
  Positive
      <i class="bi bi-info-circle"></i>
    </a>
    <a tabindex="0" class="neutral_tip" role="button" data-bs-trigger="hover focus" data-bs-toggle="popover"  data-bs-title="Neutral" data-bs-html="true" data-bs-placement="bottom">
  Neutral
      <i class="bi bi-info-circle"></i>
    </a>
    <a tabindex="0" class="negative_tip" role="button" data-bs-trigger="hover focus" data-bs-toggle="popover"  data-bs-title="Negative" data-bs-html="true" data-bs-placement="bottom">
  Negative
      <i class="bi bi-info-circle"></i>
    </a>
  </div>

</div>

JavaScript:

// Bootstrap 5 does not use AMD modules or require().
// jQuery is no longer required by Bootstrap itself.
// Initialize popovers using the Bootstrap 5 Popover API directly.

require(['jquery-noconflict'], function (jQuery) {
  var $ = window.jQuery;

  var positiveTip = document.querySelector('.positive_tip');
  new bootstrap.Popover(positiveTip, {
    html: true,
    placement: 'bottom',
    trigger: 'hover focus',
    title: 'Positive:',
    content: '<p>Positive sentiment messages include: <ul><li>Excitement about the topic of the post</li><li>Offering a strong recommendation for the product</li><li>Expressing praise, or drawing an extremely favorable comparison</li></ul></p>',
  });

  var neutralTip = document.querySelector('.neutral_tip');
  new bootstrap.Popover(neutralTip, {
    html: true,
    placement: 'bottom',
    trigger: 'hover focus',
    title: 'Neutral:',
    content: '<p>Neutral sentiment messages include: <ul><li>Factual statements with no emotional tone</li><li>Posts that neither praise nor criticize</li></ul></p>',
  });

  var negativeTip = document.querySelector('.negative_tip');
  new bootstrap.Popover(negativeTip, {
    html: true,
    placement: 'bottom',
    trigger: 'hover focus',
    title: 'Negative:',
    content: '<p>Negative sentiment messages include: <ul><li>Complaints or expressions of frustration</li><li>Strongly unfavorable comparisons</li></ul></p>',
  });
});

How to add the Grid Layout and Button:

Bootstrap 5 uses a revised grid system. Read up on Bootstrap 5's Grid System and Buttons before getting started.

Create Bootstrap's grid system for the job interface. The grid contains a maximum of 12 top level columns.

<div class="row">

The first column spanning 4 columns is created with the class col-4. Create a button link using the class btn and size it with btn-lg:

<div class="col-4">
  <h4>View the social media post:</h4>
  <br/>
  <a href="{{url}}" class="btn btn-primary btn-lg">Click here</a>
</div>

The second column spans 8 columns, and is created with the class, 'span8'.

	<div class="col-8">
  <cml:radios label="What is the sentiment of this post?" name="sentiment" validates="required">
    <cml:radio label="Positive" value="positive"/>
    <cml:radio label="Neutral" value="neutral"/>
    <cml:radio label="Negative" value="negative"/>
  </cml:radios>
</div>
</div>

How to add the Icons:

Bootstrap 5 no longer bundles Glyphicons. The platform now supports Bootstrap Icons, a separate icon library included in the environment.

Add a Bootstrap icon using the <i> tag with the bi base class and the specific icon name:

<i class="bi bi-info-circle"></i>


Browse the full icon set at icons.getbootstrap.com.

How to add the Popovers:

Bootstrap 5 popovers work differently from earlier versions. The plugin is no longer loaded via require(['bootstrap-popover']). Bootstrap 5 is bundled with the platform, and popovers are initialized using the bootstrap.Popover JavaScript API directly.

Create popover trigger elements in CML using accessible markup with a custom class name (e.g. positive_tip):

<a tabindex="0" class="positive_tip" role="button">
  Positive <i class="bi bi-info-circle"></i>
</a>

In the JavaScript section, initialize each popover using new bootstrap.Popover(). The MooTools Window.implement workaround from earlier versions is no longer required:

require(['jquery-noconflict'], function (jQuery) {
  var positiveTip = document.querySelector('.positive_tip');
  new bootstrap.Popover(positiveTip, {
    html: true,
    placement: 'bottom',
    trigger: 'hover focus',
    title: 'Positive:',
    content: '<p>Your popover content here.</p>',
  });
});

For full popover documentation, see: Bootstrap 5 Popovers.

Migrating from Bootstrap 2

If you have existing jobs built with Bootstrap 2.3.2, the following changes are required:
